TINI Firmware Update 1.02p3
(released by Dallas Dec 20, 2000)

Assumptions and Tools

I use Windows NT4 and Windows 98 (Jared uses Windows 2000 Pro), JBuilder 3.5, and a variety of STEP and TILT boards, with an 8x1-Wire board too. At work we have NT Server, a 10/100 ethernet with DSL to the outside world. At home I have a Windows 98 notebook with a PCMCIA ethernet card, a small 10 MBit ethernet, and DSL with DHCP.

Download the 1.02p3 files from Dallas
Save the .gz tar file in a temporary folder - but don't install it right now. We have a big folder on our server called "incoming" with sub-folders such as "dallas\tini" where we store such things and keep an untouched copy of all such downloads.
TINI 1.02p3 files	Get the update from Dallas by clicking on the ftp link to the left. Anonymous login is supported.
Report bugs by email here	Report 1.02 bugs to Dallas, click on the link to the left to start an email to them at this address: mailto:tini-preview@dalsemi.com?subject=tini1.02p3-bugs

Break all references to older versions of TINI firmware. (Very important)

Make all prior versions unreachable by changing the current folder name (in my case this was "tini1.02" which held the 1.02p1 files) to something like "tini102p1_obsolete". This breaks all my current paths and classpaths so that I cannot accidentally still be referring to an old version of TINI firmware. This step will save you a lot of very hard-to-solve problems. Incorrect path and classpath references can be very hard to debug and lead to mysterious build- and run- time errors. So make such references impossible and you've dodged one bullet completely.

Install the new TINI firmware

Use WinZIP or something similar to expand the TINI tar file into your system. I install mine on logical drive E: and tell WinZip to use folder information. This creates the folder E:\tini1.02 with sub-folders \bin, \doc, etc, just as they are stored in the tar file. Note: you are NOT installing the new 1.02p3 release over the top of the same root folder (tini1.02) as the prior 1.02p1 release. I'm updating from 1.02p1 to 1.02p3. Both of these release's tar files have a default folder of "tini1.02". Resist the urge to simply install the new 1.02p3 over the old 1.02p1. This is why we rename the old 1.02p1 folder first. This way you cannot have a mixture of new and old 1.02 releases in the same root folder. There are some significant changes in 1.02p3 and you don't want the old 1.02p1 files mixed in with the new ones!

Update JBuilder references to the new TINI firmware

Jbuilder's jdk.config file, in e:\jbuilder35\bin must have this line in the "addpath" area of the jdk.config file: # be sure this matches the current version of TINI firmware addpath e:/tini1.02/bin/tini.jar Update the JBuilder "required libraries" in the default paths and also the project paths of any existing projects you will be rebuilding. If you followed the "break all references" instruction above, your obsolete libraries won't be reachable and that will tip you off when you go to rebuild an existing project and try to refer to old version libraries, since you will get compile time errors. The 1.02p3 tini.jar and tiniclasses.jar are in the same place (\bin) as 1.02p1, but the OneWire jar is now called owapi_dependencies_TINI_001.jar. So I was able to keep my "TINI API" required library definition and just create a new one for OneWire.

Screen captures of JBuilder required library definitions

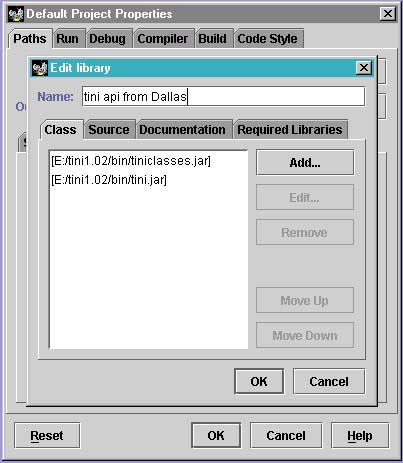

	Required library - TINI API. Click the thumbnail for a larger image.

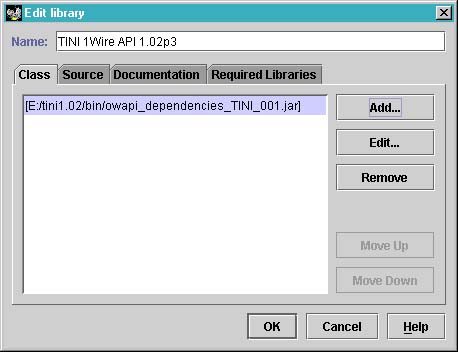

	Required library - One Wire Dependencies. Click the thumbnail for a larger image.

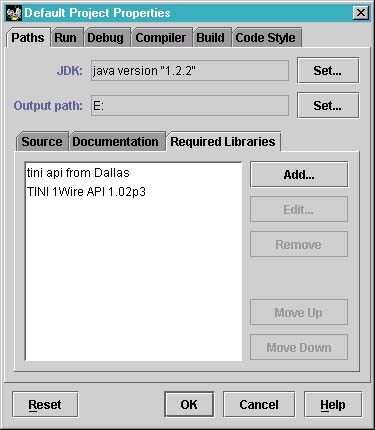

	Here's the result of all required TINI libraries. Click the thumbnail for a larger image.

Install the new TINI firmware on a TINI module using JavaKit

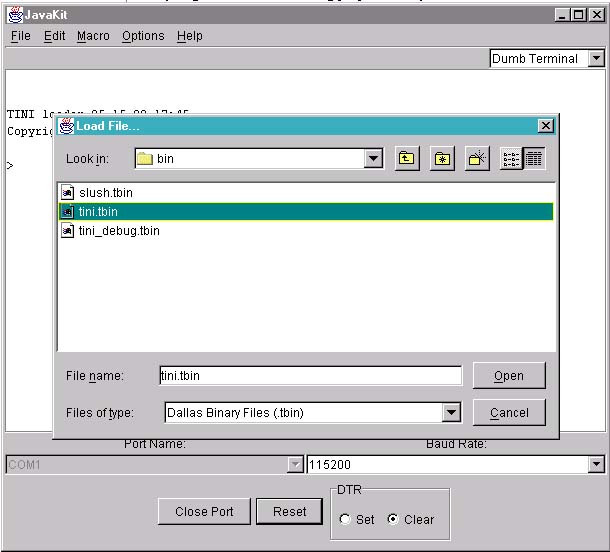

I use a batch file JavaKit.bat to invoke JavaKit. No changes are needed from 1.02p1. I also create macro files to configure TINI's IP address and options. Here's the macro file, ip45.mac for our "public" TINI demo system. Connect your PC to TINI's serial0 with a straight (not null modem) serial cable. Start JavaKit (I just click on the batch file) and you should be able to select a comm port and reset TINI if JavaKit is properly installed (if not, try here for JavaKit install help). Now at the TINI loader prompt (your TINI must be the 0515 loader, if not you need to use JavaKit's File->Update Loader command first), use the JavaKit Load file menu and load tini.tbin (from e:\tini1.02\bin). Then use the same procedure to load slush.tbin (from e:\tini1.02\bin), this is the TINI command shell which includes ftp and telnet services. Here's a screen shot of that. You will see TINI's D1 LED blink periodically through the loading process. Still at the loader prompt, clear the heap with a B18 and F0 (that's F'zero', not an uppercase 'O'). Now type E to execute slush. You should see the slush version as 1.02 p3: [-= slush Version 1.02 Pre-Release 3 =-] Now's a good time to load and then run the macro file to set up TINI's IP configuration.

TiniTools

At this time, TiniTools will not convert a 1.02 .class to a .tini file. But the FTP Put and Telnet portions of TiniTools still work. (Not familiar with TiniTools?)

Make Shortcuts to the TINI and OneWire JavaDocs

I like to have a folder with my various TINI tools, including shortcuts to pertinent JavaDocs. The JavaDocs have moved in 1.02p3. TINI JavaDocs are at E:\tini1.02\docs\javadocs\firmware\index.html and the OneWire JavaDocs are at E:\tini1.02\docs\javadocs\modules\owapi\index.html For completeness, the Sun Java2 1.2.2 API JavaDocs are at http://java.sun.com/products/jdk/1.2/docs/api/index.html

Build, upload and run a TINI Java App - with these steps

Build a java program into a .class file in JBuilder or the tool of your choice. Convert the .class file to a .tini file. If you are not using OneWire classes, you can just use TiniConverter. If you are using OneWire classes, 1.02p3 now uses BuildDependency, which replaces and extends the functionality of the BuildOneWireProgram. You can also use BuildDependency (which actually invokes TiniConverter) if you are not using OneWire classes, so this is my preferred method. More on this below. Upload to TINI using either TiniTools ftp put, or a separate FTP program. I use both, and use a batch and command file to streamline command-line FTP.

Convert with BuildDependency

Thanks to Kris Ardis at Dallas for a good method of passing a variable number of parameters to BuildDependency. Here's the batch file I use along with an enhanced dependency file. This lets me build with a command line such as: buildep Flasher4 10 12 ...which builds and converts Flasher4.class into Flasher4.tini, adding OneWire containers 10 and 12. Another option is to use TiniAnt (I haven't tried this yet), from Sean Kelly.
