Keypads

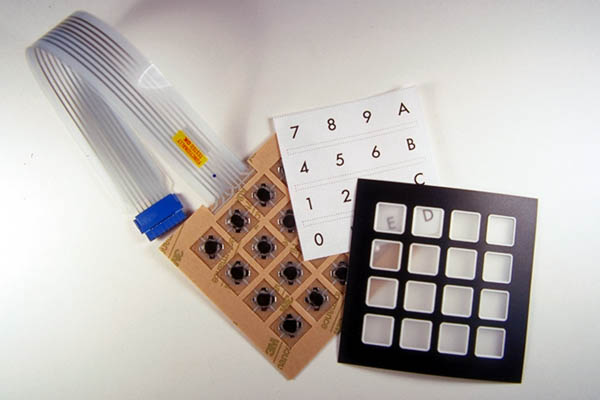

Our standard keypad is a 4x4 membrane type, splashproof and easily customized. It features tactile feedback and an embossed overlay for a crisp feel and professional appearance. In the photo, the keypad, legend and overlay are shown unassembled.

You can easily create your own key legends (or use our sample files) on a laser or inkjet printer.
This keypad can be used with our embedded Java systems STEP/SBX2 (Dallas TINI390 modules) and the super-fast aJile-based SaJe. The keypad is also compatible with our DPB2 Dallas 8051 systems.

Keys are on 3/4" centers so it's easy to create your own key legends in a graphics program, or even in a word processor table. Just lay out a 4 x 4 table with cells 3/4 inch on center, with each cell 1/2" square. For a complete CAD drawing and dimensions of the keypad in our plastic enclosure please see the enclosure page.

Keypad Technical Reference
Keypad Technical Reference Instructions on using the keypad. If you are using this keypad with Java systems such as STEP/SBX2 or SaJe please see the SBX2 documentation.
Keypad legends ready to print, cut out, and use
hexadecimal keypad numbers 0-9 and A-F
decimal keypad numbers 0-9, and navigation keys
