Photographs (about 100 KBytes each, click on the image for a larger view) |
|
 |

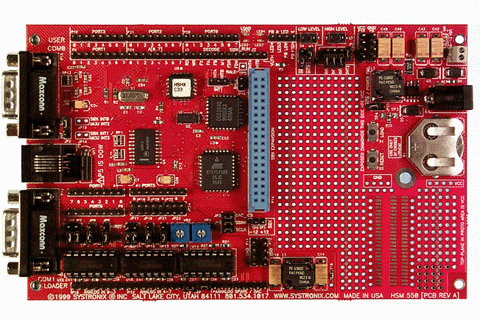

Top view |
 |

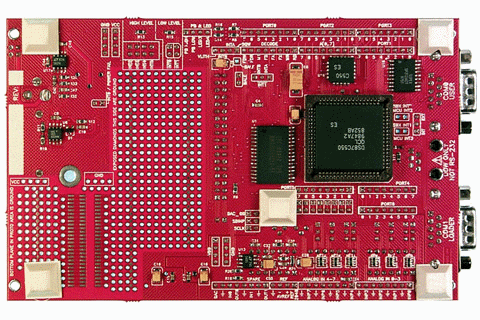

Bottom view (DS87C550 socket side). The processor socket is on the 'back' side of the board. This enables an ICE to be installed while an SBX card is also installed. It also enables probing the labelled headers on the top of the board while using an ICE. |
 |

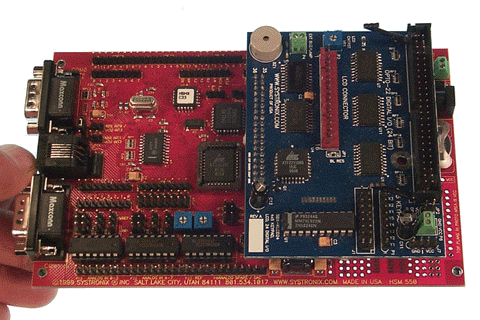

With Systronix SBX1 option card installed. |
 |

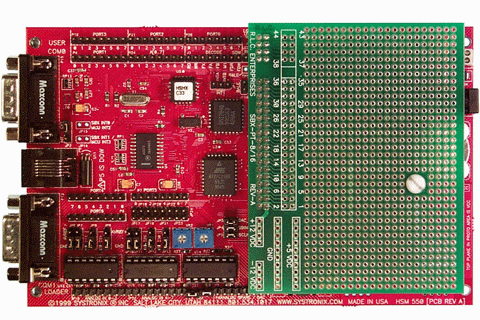

With SBX prototype card installed. |
