TracBot photo
TracBot photo

Renderings

These beautiful renderings are from the 3-D model done by Daniel Fish using the open source tool Blender.


Click for a higher-resolution image.
Renderings
Daniels Web Page
Daniel's web page about the modelling, with more images.
TrackBot with JStamp
TrackBot "loaded" with triple Sonar/PIR Transducer Stations, Cliff Sensors and SunSPOT as the application brain.
TrackBot with JStamp

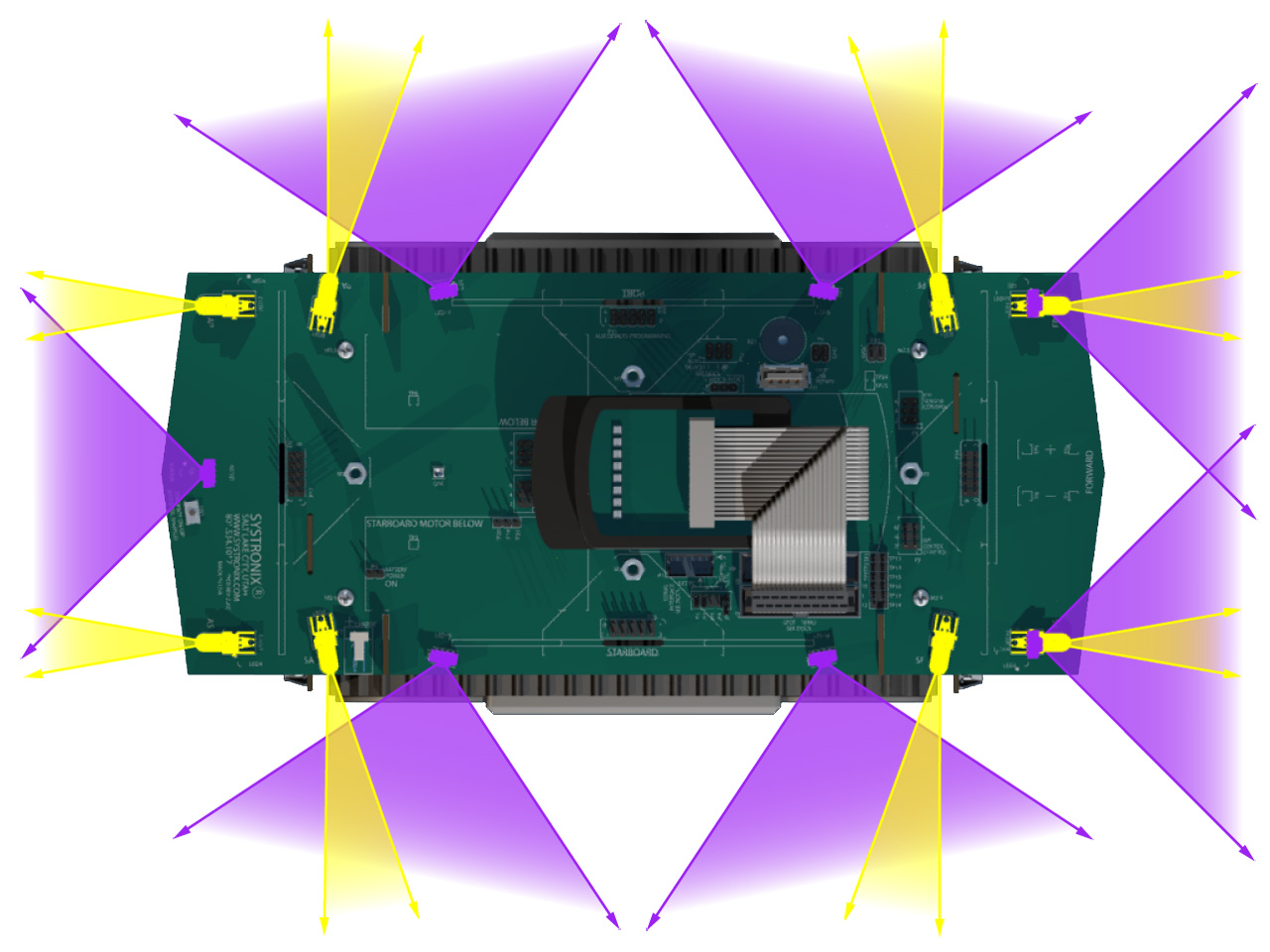

Top view showing the array of penta-function IR sensor modules. Also shown is a Sun SPOT as the Application Brain and the SPOT-to-TrackBot ribbon cable.

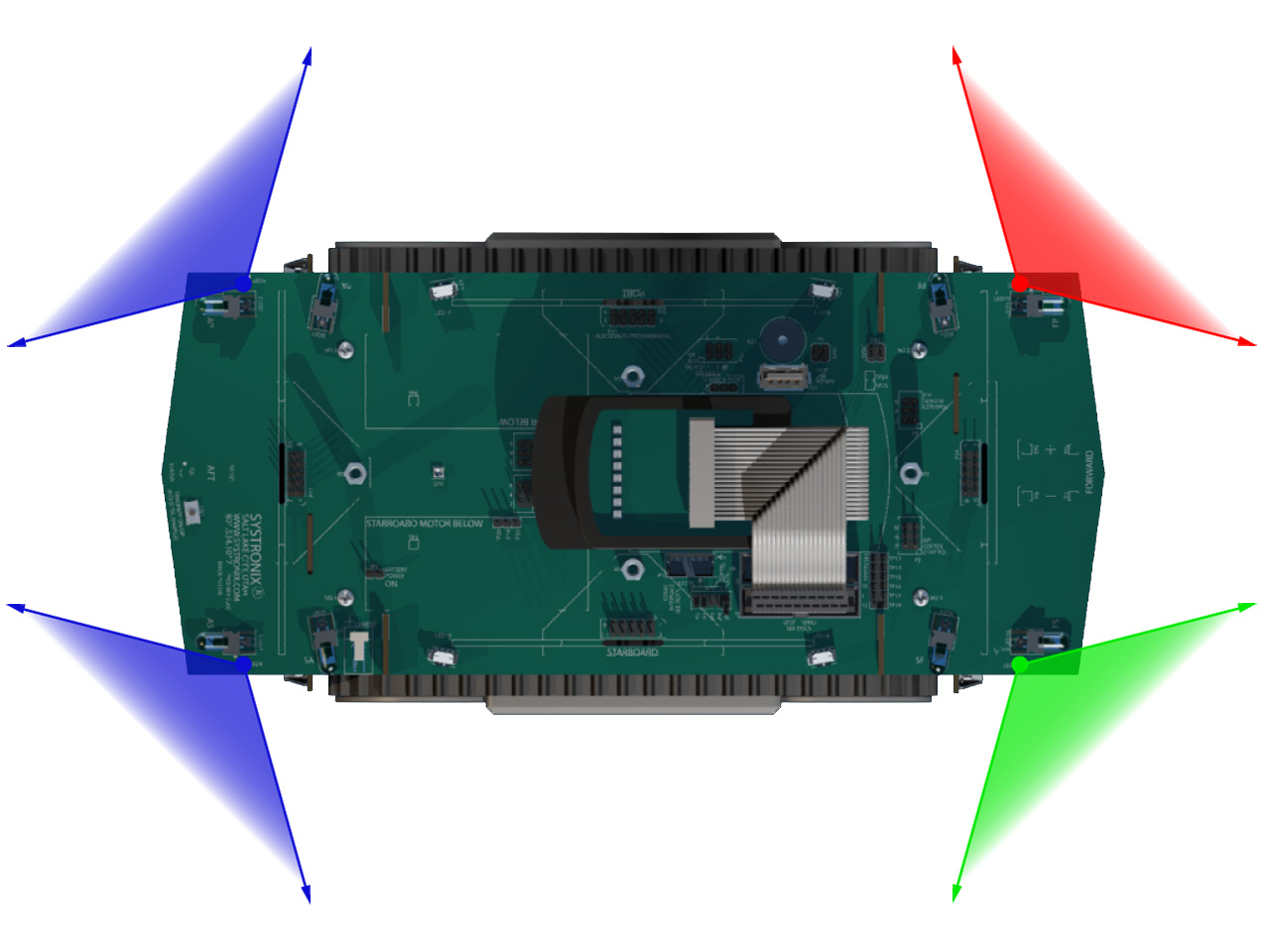

Top view RGB corner LEDs
Top view showing the four corner LEDs which are RGB. Here they are shown displaying specific colors. Each RGB LED can also be blended to produce custom colors, including a pretty reasonable white. Note the wide horizontal angle (+/- 60 degrees, half-power beam width). They are also very bright when viewed from overhead. These LEDs also have multiple functions.
