Photographs (about 100 KBytes each, click on the image for a larger view) note: these are all photos of Rev2 boards with the 5-way screw terminals for CAN (the large green connector). Rev3 uses a 5x2 header instead.

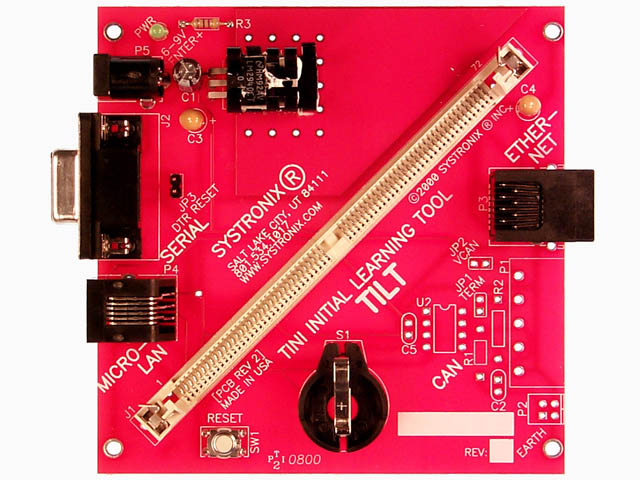

	Top view of TILT.68.CAN without the TINI board installed. This photo is just the TILT sockets board, no mounting track.

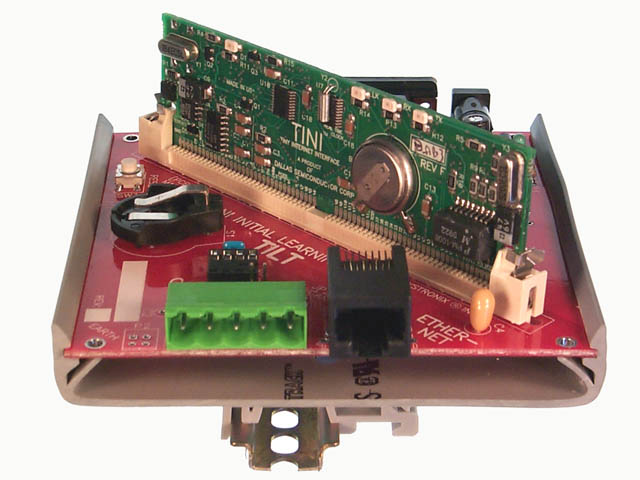

	CAN- and Ethernet- end view, showing TILT snapped into our mounting track with clips to snap onto a standard DIN rail which is just visible in this photo. This is a very easy and low cost way to mount TILT (and our other euro-size boards such as STEP). The plastic track can also be affixed directly to a wall or enclosure surface. Apart from mounting the DIN rail, no tools or fasteners are required - it all snaps together.
	Top view of TILT.68.CAN with TINI board installed, snapped into our mounting track.
	"Back" view of TILT.68.CAN with TINI board installed, snapped into our mounting track, the edge of the two DIN rail clips just visible.
	End-on view showing how the sockets board snaps into the track, and the clips attach the track onto the DIN rail. It all just snaps together with no tools or fasteners.
