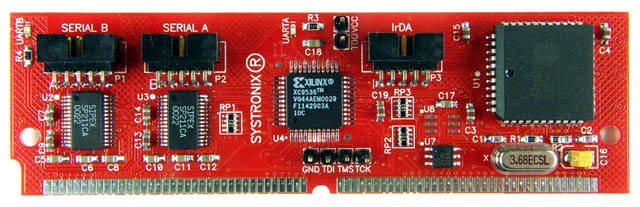

Top view of SIMMSerial. Note the two RS232 DCE or DTE headers and the IrDA header. |
 |
All the serial adapters for SIMMSerial and SBX2. From left to right: IrDA, RS-232 DTE, and RS-232 DCE. All attach to SBX2 with a 2mm 5x2 ribbon cable jumper. |
 |

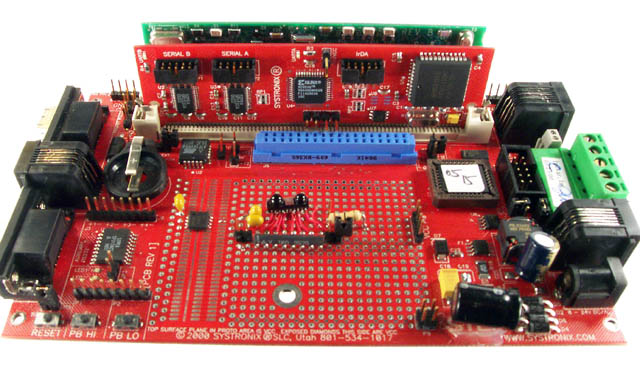

SIMMSerial plugged in to a (well-used) STEP+ board. |
