SBX standard
plug-on I/O expansion

SBX2

(Obsolete)
Software & Firmware Support

SBX2 UART timing with TINI:
Earlier releases of SBX2 (PCB Rev2 for example) had a Xilinx part which was running faster than specified. This disguised the fact that, with TINI, SBX2 needs a non-zero stretch cycle value. There are several reasons for this. The TINI javaxcomm support (the current version is TINI 1.02e) changes the C390 CKCON MD[2,1,0] bits from a default of one (three machine cycles per movx) to zero (two machine cycles per movx). This support was written assuming no buffering between the TINI bus and a C552 UART. SBX2 uses buffering in its CPLD, and uses a C550 UART. The buffer adds delay to the data and address bus, and the C550 UART has an address setup time which is twice as long as the C552 (30 nsec vs 15 nsec). For these reasons TINI needs a stretch cycle change to work properly with the SBX2 UART. The native method provided here does that. See the comments in the native method .a51 file for instructions on use.
SBX2 UART timing with SaJe:
The design of SaJe provides variable peripheral timing automatically. If you use the JemBuilder SaJe com3 driver, the timing will be correct for accessing SBX2. The aJ100 has a completely different I/O bus design from TINI, so the above TINI notes do not apply to SaJe.
Mar 2002: Important note about SBX2 rev3 PC boards without an 'A' on the serial number label: We have discovered and fixed a problem in the CPLD code for SBX2, PCB Rev3 only. The PCB Rev is written in the board silkscreen next to the keypad connector P1. The new CPLD code fixes a problem when reading and writing the parallel I/O (three 8-bit ports) of SBX2. If you have a Rev3 board and the letter 'A' is not written in on the serial number sticker, please contact us via email to arrange to return your boards for a free upgrade. We'll also pay the shipping both ways. If you have ability to program Xilinx CPLDs we can also email you the files and you can perform the upgrade yourself. SBX2 Rev2 or SBX2 Rev3 with 'A' added to the serial number are not affected. The CPLD code does not change UART or LCD timing or other portions of SBX2 operation, just the parallel I/O access. A fringe benefit of the upgrade is that the CPLD now runs in low power mode, greatly reducing SBX2's power consumption.
Note about TINI parallel I/O access (updated 11 April 2002):
On TINI with rev B3 80C390 we see some infrequent I/O errors when writing to bytewide I/O port INOUT1. The write appears to be correct and the read returns incorrect data about one out of every 250,000 - 500,000 times. We do not see this sort of behavior on SaJe, nor on SBX2 running assembly code with an 80C390 controller (our uCAN2 board). We have isolated the problem to versions of TINI with rev B3 of the 80C390. Rev B4 does not have this anomaly. On the B3 devices, if you read the INOUTX data twice, it will always be correct the second time, so you could use this if your code will run on B3 80C390s. All other portions of SBX2 are not affected by this anomaly and work as expected with TINI.
2002 Dec 18
RS485 example code
45 KByte RS_485_2002dec18.jar
Simple RS485 send and receive example, currently only for TINI. SaJe coming soon, or you can easily modify this code yourself.
2002 Oct 03
SerialEchoEvent Example using SerialEvent with javaxcomm . This example is for TINI, STEP and SBX2.
30 KByte SerialEchoEvent.jar
This example uses a javaxcomm SerialEvent to receive and echo out serial data using the SBX2 UART, accessed as TINI's serial2, at 115 kbaud. Java source and javadocs are included. You also need the setExtUartTiming native method file. This example also echos the hex and character values of incoming data to a telnet connection.
2002 Oct 03
SerialEcho Example with Blocking Read for SBX2, uses javaxcomm. This example is for TINI, STEP and SBX2.
40 KByte SBX2_SEBR.jar
This example uses a jvaxcomm blocking read to echo out what it receives on the SBX2 UART, accessed as TINI's serial2, at 115 kbaud. Java source and javadocs are included. You also need the setExtUartTiming native method file.
2002 Oct 03
TINI native method to change movx timing so that TINI works correctly with the C550 UART on SBX2. This example is for TINI, STEP and SBX2.
5 KByte setExtUartTiming.zip
Native method to add stretch cycles when using SBX2 with TINI. The SBX2 C550 UART needs stretch cycles increased from TINI's default of 0, and the included native method does that. All native method source code is included. See the comments in the native method .a51 file for instructions on use, (including Java code instructions).
2002 Oct 03
Simple utility file used by some of the examples on this page.
16 KByte systronix_utils.jar
Simple Java utility file used by some of the example programs. Generic, not specific to any target device.

SBX2_API for SaJe aJile 3.16 RAM build Dallas TINI 1.02e
JAR file (500 KB)
you also need the Systronix
Utilities Jar file (16 KB)
and (only for TINI) this
TINI dependency file

revised 2002 Dec 18
simple LCD support, parallel I/O
and test program included
works with SBX2 Rev3

It's here - one Java API package for TINI and native execution SaJe. This is a preliminary version and not complete - it will be finished soon. Your code contributions are welcome! Uses abstract classes and Class.forName to access the proper hardware support. When building on TINI you need the referenced dependency file and the buildep.bat file or equivalent. There are some not obvious subtleties here, please start with the included batch files to ensure a successful build. Javadocs, project configuration files, build scripts, etc are included. This is a SaJe RAM build (this distinction does not apply to TINI).

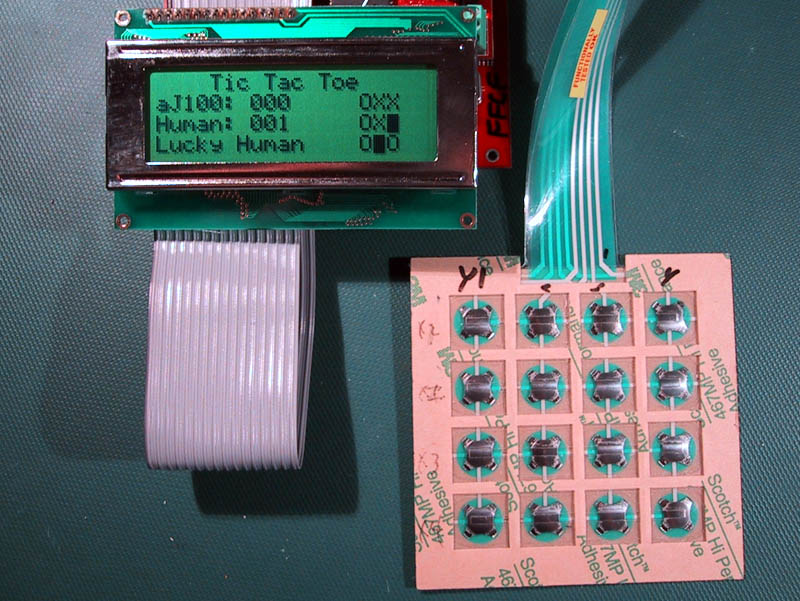

TicTacToe for SaJe and SBX2
RAM build JAR file (610 KB)
revised 2002 Dec 18
Example program for SaJe, SBX2, 20x4 LCD and keypad. Includes keypad test, TicTacToe and a 20x4 character LCD class. The JAR includes all Java sources, JBuilder and JemBuilder project files, JavaDocs, and prebuilt class files.

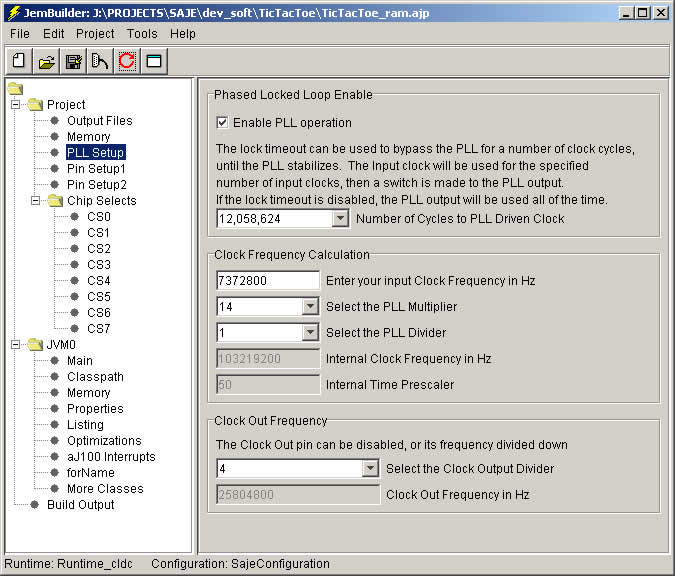

Important: you must configure JemBuilder properly to generate the slower I/O cycles needed by SBX2. Here is one option we call CLKOUT/4 which is used in the example above. (This runs the aJ100 at 103 MHz and uses its CLKOUT/4 to generate a 25 MHz timing signal used by SaJe's CPLD to generate the SBX2 strobes.) The JemBuilder .AJP project file included in the TicTacToe JAR is configured this way.

TINI Utils Java Classes (30 KB)
(being replaced by SBX2_API)

JAR file with some simple, helpful support classes such as hex digit display, threaded wait routines, etc. which are not specific to SBX2. Includes sources and javadocs.

8051 Assembly code drivers
Pretty complete assembly code drivers with sample test code. This is what we use for final manufacturing test of SBX2. Uses SBX2's, LCD, keypad, and one RS232 output. Tests RS485 in loopback. Use with uCAN2, 80C390, etc. (Not for use with TINI Java modules).
