8x1-Wire I/O Board

Photographs (about 100 KBytes each, click on the image for a larger view)
	Top view of 8 1-Wire I/O board. The upper left RJ11 is shown with a cable running over to a TILT board. Board size is 100x50 (half-euroboard).

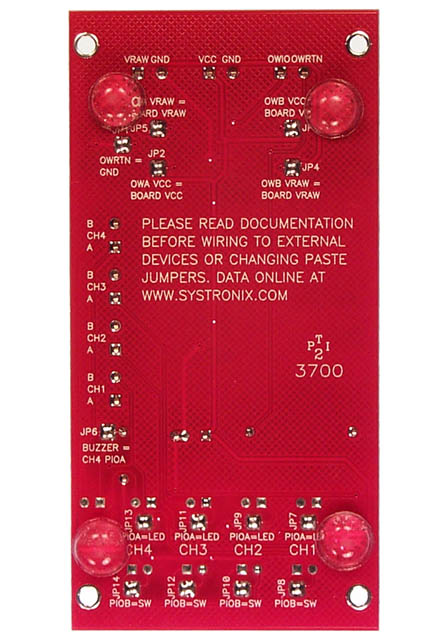

	Back side of the board showing the paste jumpers which are soldered closed at the factory. You can easily open them to isolate one or more of the I/O points. We provided pads for 100-mil spaced .025 post jumpers so that you can install your own jumper to permit changing the options without a soldering iron.

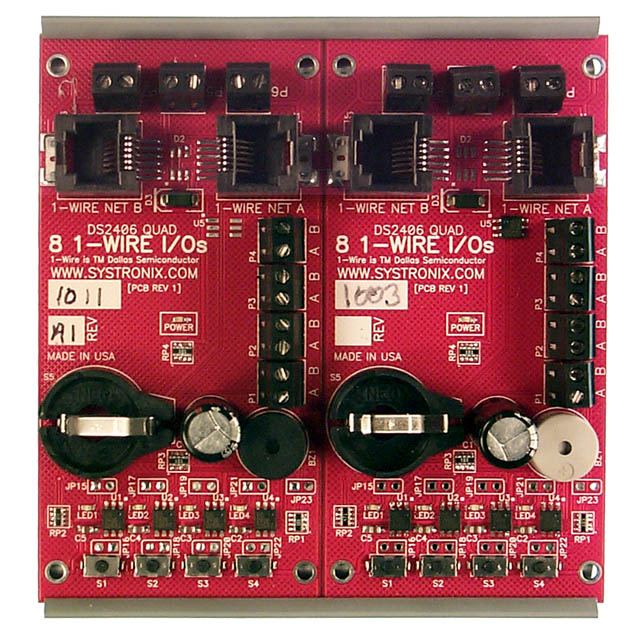

	Two 8x 1-Wire boards mounted side by side in our snap-track mounting system.
